Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output traces short and away from each other, and using a solid ground plane to reduce noise and EMI.
The choice of input and output capacitors depends on the specific application and operating conditions. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides some guidance on capacitor selection, but it's also important to consider factors such as voltage rating, temperature range, and physical size.
The UC3906DWG4 is rated for operation from -40°C to 85°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. It's important to ensure that the device is properly cooled and that the thermal design meets the requirements of the application.
The UC3906DWG4 requires a specific bias voltage and configuration to operate correctly. The datasheet provides some guidance on biasing and configuration, but it's also important to consult the application notes and other documentation provided by Texas Instruments. Additionally, it may be necessary to perform simulations and testing to ensure the device is properly biased and configured for the specific application.
Common failure modes of the UC3906DWG4 include overheating, overvoltage, and electrical overstress. To mitigate these failure modes, it's important to ensure proper thermal design, voltage regulation, and protection against electrical overstress. Additionally, it's important to follow proper handling and storage procedures to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3906DWG4 Overview

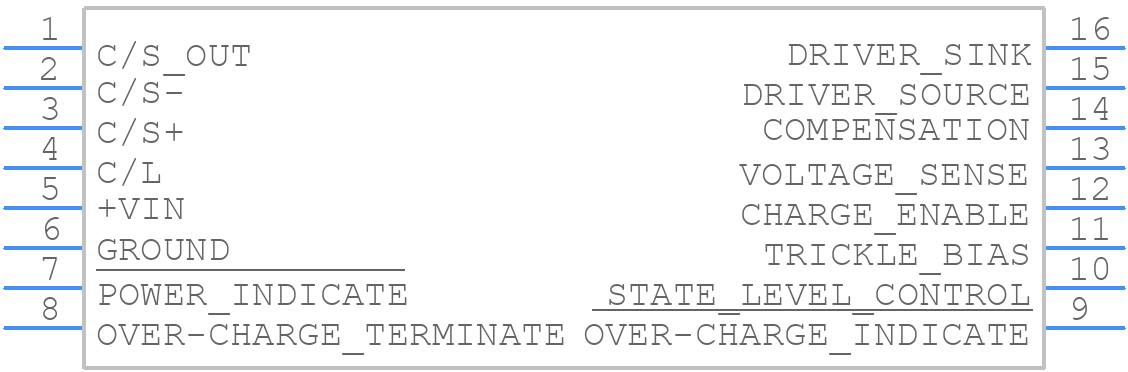

Use the download button to access the UC3906DWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC390,
or try a keyword search, such as Power Management Circuits
