Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor should be selected based on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of at least 10uF. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to minimize voltage ripple and ensure stable operation.
The UC3906NG4 is rated for operation from -40°C to 85°C, but the maximum ambient temperature range may be limited by the specific application and the thermal management system used. It's essential to ensure that the device is operated within its recommended temperature range to ensure reliable operation and prevent overheating.
The UC3906NG4 is a commercial-grade device, and it may not meet the requirements for high-reliability or aerospace applications. Texas Instruments offers a range of radiation-hardened and high-reliability devices that are specifically designed for these applications. Engineers should consult with Texas Instruments or a qualified distributor to determine the suitability of the UC3906NG4 or alternative devices for their specific application.
Troubleshooting issues with the UC3906NG4 requires a systematic approach. Engineers should start by verifying the input voltage, output voltage, and output current, and then check the PCB layout, component values, and soldering quality. Texas Instruments provides a range of application notes and technical documents that provide guidance on troubleshooting and debugging techniques. Additionally, engineers can consult with Texas Instruments' technical support team or a qualified distributor for assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3906NG4 Overview

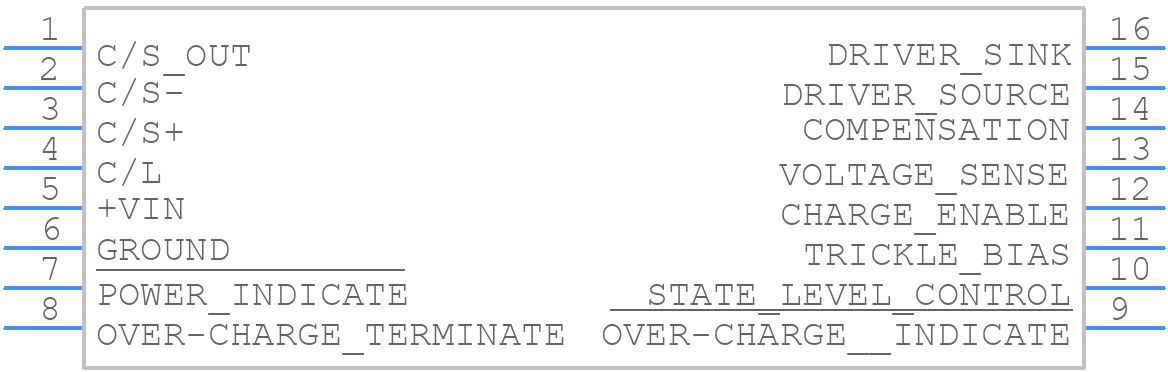

Use the download button to access the UC3906NG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC390,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
