PROGRAMMABLE TO PROVIDE REGULATED VOLTAGES OF 2.82V, 3.12V, 5.1V, 7.8V, 10.42V, 12.24V
Analog IC - Other Type:
THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code:
R-PDIP-T8
JESD-609 Code:
e4
Length:
9.78 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
70 °C
Output Current-Max:
0.05 A
Output Voltage-Max:
36 V
Output Voltage-Min:
2.3 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP8,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
5.33 mm
Supply Voltage-Max (Vsup):
36 V
Supply Voltage-Min (Vsup):
2.2 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Trim/Adjustable Output:
YES
Width:
7.62 mm
UC39431N Frequently Asked Questions (FAQs)
TI recommends a compact layout with minimal trace lengths, using a solid ground plane, and placing the IC close to the input capacitors. Additionally, ensure that the high-current paths are separated from the low-current paths, and use shielding or guard rings to reduce EMI.
Choose low-ESR, high-frequency capacitors (e.g., ceramic or film capacitors) with a voltage rating above the maximum input voltage. Consider the capacitor's ripple current rating, temperature coefficient, and physical size. A good starting point is to use 10-22 μF capacitors with a voltage rating of 25-50 V.
The UC39431N can deliver up to 3 A of output current. However, the maximum output current is dependent on the input voltage, output voltage, and thermal considerations. Ensure that the design takes into account the IC's thermal limitations, and consider adding heat sinks or thermal management if necessary.
The UC39431N has built-in OVP and UVP features. For OVP, connect a resistor divider network to the VSENSE pin to set the overvoltage threshold. For UVP, connect a resistor divider network to the VSENSE pin and the UVLO pin to set the undervoltage threshold. Ensure that the resistors are chosen to provide the desired voltage threshold and hysteresis.
The UC39431N has a high power density, so thermal design is crucial. Ensure good airflow, use a heat sink with a thermal resistance of < 10°C/W, and apply thermal interface material (TIM) to the heat sink. Consider using a thermal pad or thermal tape to improve heat transfer. Monitor the IC's junction temperature (TJ) and ensure it stays within the recommended operating range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC39431N Overview

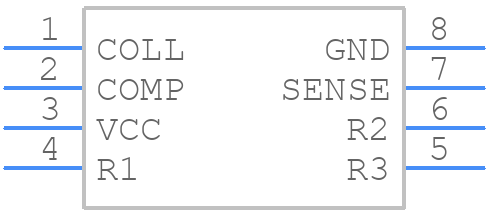

Use the download button to access the UC39431N schematic symbol, PCB footprint, and 3D model.
