A good PCB layout for the UCC20520DW involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. The EN pin should be tied to VCC or a voltage source > 2.5V for normal operation. The datasheet provides more information on biasing and startup conditions.
The UCC20520DW has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and follow TI's thermal design guidelines to prevent overheating. The datasheet provides thermal resistance and power dissipation information.
Start by checking the power supply, input, and output connections. Verify the device is properly biased and the input voltage is within the recommended range. Use an oscilloscope to check the output waveform and frequency. Consult the datasheet and application notes for troubleshooting guides and FAQs.
Yes, the UCC20520DW is sensitive to electromagnetic interference (EMI). Use proper PCB layout, shielding, and filtering techniques to minimize EMI. Follow TI's EMI/EMC guidelines and consult the datasheet for specific recommendations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC20520DW Overview

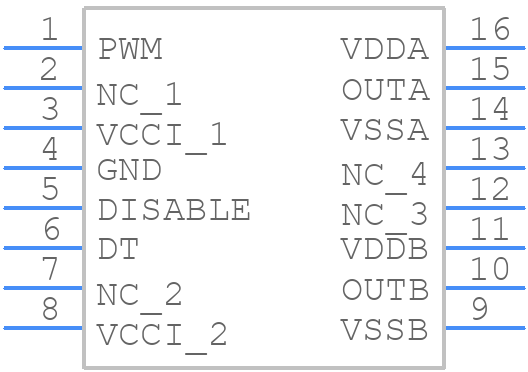

Use the download button to access the UCC20520DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC20,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
