Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke and a shielded inductor to reduce EMI.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also recommended to add a small resistor (e.g. 10 ohms) in series with the output capacitor to dampen oscillations.
The UCC21220DR is rated for operation from -40°C to 125°C. However, the device may still function outside of this range, but with reduced performance and reliability.
Yes, the UCC21220DR is suitable for high-reliability applications. It's built with high-reliability materials and manufacturing processes, and is qualified to automotive and industrial standards. However, it's recommended to follow Texas Instruments' guidelines for high-reliability design and testing.
To troubleshoot issues with the UCC21220DR, start by checking the input and output voltages, and ensuring that the device is properly powered. Use an oscilloscope to check for oscillations or other anomalies. Check the PCB layout and component values to ensure they match the recommended design. If the issue persists, consult the Texas Instruments support resources or contact a local representative.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21220DR Overview

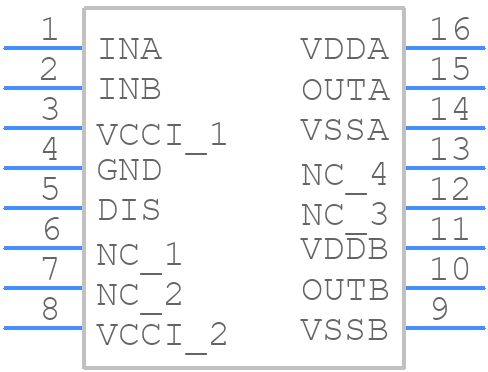

Use the download button to access the UCC21220DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
