A good PCB layout for the UCC21222D involves keeping the input and output stages separate, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure proper biasing, follow the recommended biasing scheme in the datasheet, which includes setting the VCC voltage to 12V, and the VEE voltage to -5V. Additionally, ensure that the input and output stages are properly terminated with the recommended resistors and capacitors.
The maximum power dissipation of the UCC21222D is 1.4W. However, this can be affected by factors such as ambient temperature, PCB layout, and thermal management. It's essential to ensure proper thermal management to prevent overheating.
Yes, the UCC21222D is qualified for high-reliability and high-temperature applications. It's designed to operate from -40°C to 125°C, making it suitable for use in harsh environments. However, it's essential to follow proper design and testing procedures to ensure reliability and performance.
To troubleshoot common issues with the UCC21222D, start by checking the PCB layout, biasing, and termination. Ensure that the input and output stages are properly terminated, and the power supply is stable. Use oscilloscopes and signal generators to analyze the input and output signals, and consult the datasheet and application notes for troubleshooting guides.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21222D Overview

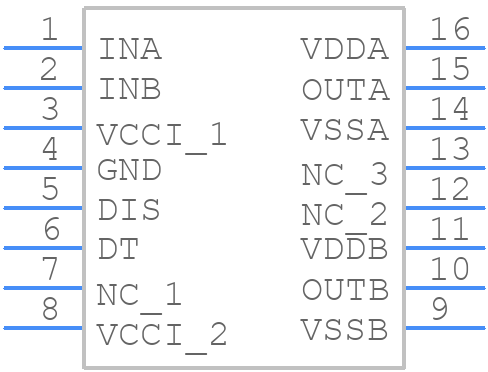

Use the download button to access the UCC21222D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
