UCC21222DR - Texas Instruments

Description: 4-A, 6-A, 3.0-kV(RMS) Isolated Dual-Channel Gate Driver With Dead Time

Download UCC21222DR Model
Schematic

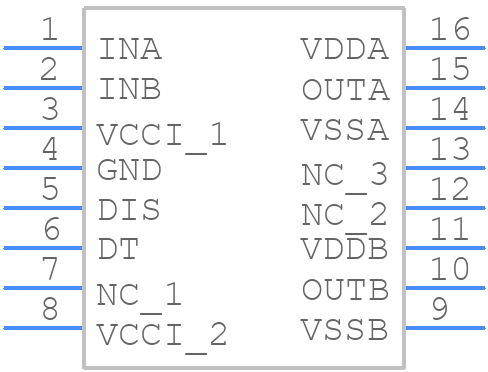

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21222DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
UCC21222DR - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

UCC21222DR Details

  • Manufacturer Part Number:

    UCC21222DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Built-in Protections:

    TRANSIENT; UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    9.2 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    3.9 mm

UCC21222DR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21222DR involves keeping the input and output stages separate, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure proper biasing, follow the recommended biasing scheme in the datasheet, which includes setting the input voltage (VIN) to 3.3V or 5V, and the output voltage (VOUT) to the desired level. Also, ensure the input and output capacitors are properly sized and placed close to the device.
  • The UCC21222DR can deliver up to 2A of output current, but this depends on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet for specific output current capabilities under different operating conditions.
  • To manage thermal issues, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB layout guidelines. Also, monitor the device's junction temperature (TJ) and adjust the operating conditions accordingly to prevent overheating.
  • To ensure EMI and EMC compliance, follow proper PCB layout and grounding techniques, use shielding and filtering as needed, and consider using a common-mode choke or ferrite bead to reduce EMI emissions. Also, ensure the device is properly decoupled and bypassed.
