UCC21520AQDWRQ1 - Texas Instruments

Description: Automotive 4A/6A, 5.7 kVrms Isolated Dual Channel Gate Driver

Download UCC21520AQDWRQ1 Model

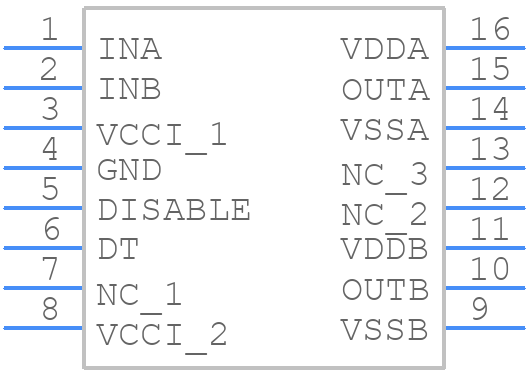

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21520AQDWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - UCC21520AQDWRQ1
click to zoom
3D Models
UCC21520AQDWRQ1 - Texas Instruments  - 3D model - Small Outline Packages - UCC21520AQDWRQ1
click to zoom

UCC21520AQDWRQ1 Details

  • Manufacturer Part Number:

    UCC21520AQDWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-06-06

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    25 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    7.5 mm

UCC21520AQDWRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21520AQDWRQ1 involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing the length of the power traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure the UCC21520AQDWRQ1 operates within its SOA, monitor the device's junction temperature (TJ), input voltage (VIN), and output current (IOUT). Ensure TJ stays below 150°C, VIN is within the recommended range (4.5V to 18V), and IOUT does not exceed the maximum rating (2A).
  • When selecting L and COUT, consider the desired output voltage ripple, inductor saturation current, and capacitor ESR. TI provides guidelines for selecting L and COUT in the datasheet and application notes. A good starting point is to use an inductor with a saturation current rating above the peak inductor current and a capacitor with a low ESR to minimize voltage ripple.
  • To troubleshoot issues with the UCC21520AQDWRQ1, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, decoupling, and component selection. Use an oscilloscope to inspect the switching waveforms and look for signs of oscillation or ringing. Consult the datasheet, application notes, and TI's support resources for guidance.
  • To manage thermal performance, ensure good airflow around the device, use a heat sink if necessary, and follow TI's recommended thermal design guidelines. Monitor the device's junction temperature (TJ) and ensure it stays below 150°C. Use thermal interface materials (TIMs) to improve heat transfer between the device and heat sink.
