UCC21520DWR - Texas Instruments

Description: Gate Drivers 4A/6A, 5.7 kVrms Isolated Dual Channel Gate Driver 16-SOIC -40 to 125

Download UCC21520DWR Model

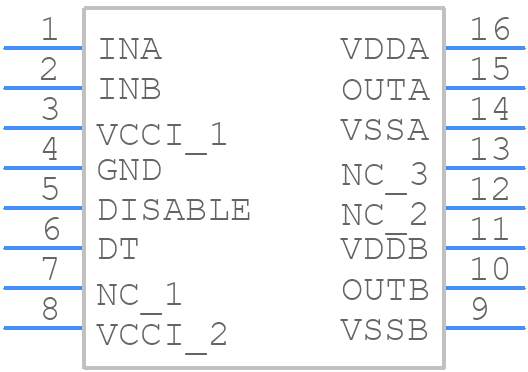

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21520DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - UCC21520DWR-1
click to zoom
3D Models
UCC21520DWR - Texas Instruments  - 3D model - Small Outline Packages - UCC21520DWR-1
click to zoom

UCC21520DWR Details

  • Manufacturer Part Number:

    UCC21520DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-06-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    25 V

  • Supply Voltage1-Min:

    9.2 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.045 µs

  • Turn-on Time:

    0.045 µs

  • Width:

    7.5 mm

UCC21520DWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21520DWR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loop areas. TI provides a recommended PCB layout in the application note SLUA623.
  • To ensure reliable operation in high-temperature environments, ensure that the device is properly heatsinked, and the junction temperature (TJ) is kept below the maximum rating of 150°C. Also, consider derating the output current and voltage according to the thermal derating curve in the datasheet.
  • When selecting input and output capacitors for the UCC21520DWR, consider the capacitor's equivalent series resistance (ESR), voltage rating, and ripple current rating. TI recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage and a ripple current rating that meets the application's requirements.
  • To troubleshoot issues with the UCC21520DWR, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component selection, and thermal management. Use an oscilloscope to inspect the switching waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, the UCC21520DWR can be used in a synchronous rectification topology. However, this requires careful design and layout considerations to ensure proper operation. TI provides guidance on synchronous rectification in the application note SLUA622.
