UCC21520QDWQ1 - Texas Instruments

Description: Automotive 4A/6A, 5.7 kVrms Isolated Dual Channel Gate Driver

Download UCC21520QDWQ1 Model

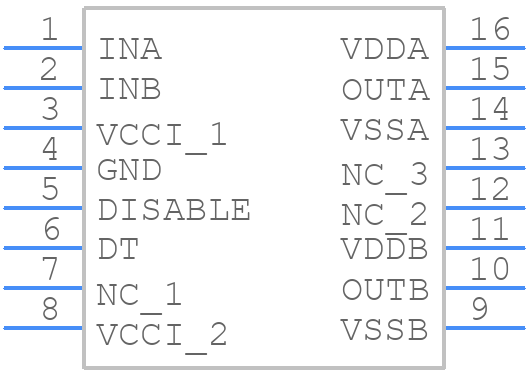

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21520QDWQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G16)
click to zoom
3D Models
UCC21520QDWQ1 - Texas Instruments  - 3D model - Small Outline Packages - DW (R-PDSO-G16)
click to zoom

UCC21520QDWQ1 Details

  • Manufacturer Part Number:

    UCC21520QDWQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-20

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    25 V

  • Supply Voltage1-Min:

    9.2 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    7.5 mm

UCC21520QDWQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21520QDWQ1 involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loop areas to reduce EMI.
  • To ensure the UCC21520QDWQ1 operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Ensure the device is properly heatsinked, and the input voltage is within the recommended range. Also, avoid operating the device at high output currents for extended periods.
  • When selecting the input capacitor (CIN) for the UCC21520QDWQ1, consider the capacitor's voltage rating, ESR, and ripple current rating. Choose a capacitor with a voltage rating higher than the maximum input voltage, and ensure its ESR is low enough to minimize voltage ripple.
  • To troubleshoot issues with the UCC21520QDWQ1, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, component selection, and thermal management. Use an oscilloscope to inspect the switching waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Operating the UCC21520QDWQ1 at high ambient temperatures can reduce its reliability and lifespan. Ensure the device is properly heatsinked, and consider derating the output current and input voltage to prevent overheating. Consult the datasheet for thermal derating guidelines.
