A good PCB layout for the UCC21521DWR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing the length of the traces connected to the SW pin.
To ensure the UCC21521DWR operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Ensure that the device is not subjected to excessive voltage, current, or temperature stress.
When selecting the input capacitor (CIN) for the UCC21521DWR, consider the capacitor's voltage rating, ESR, and ripple current rating. Choose a capacitor with a voltage rating that exceeds the maximum input voltage, and ensure its ESR and ripple current rating meet the application's requirements.
To optimize the output filter design for the UCC21521DWR, consider the output voltage ripple requirement, output current, and switching frequency. Choose an output inductor with a suitable inductance value and DC resistance, and select an output capacitor with a suitable capacitance value and ESR.
For thermal management of the UCC21521DWR, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the device. Also, consider the device's power dissipation and junction temperature when designing the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21521DWR Overview

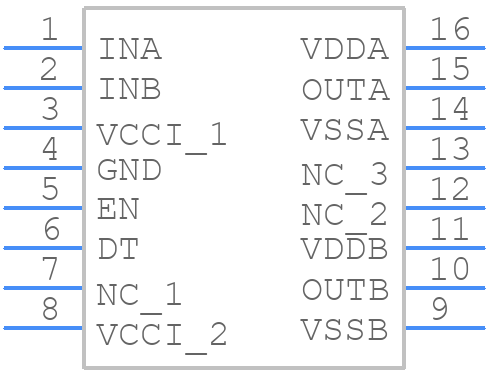

Use the download button to access the UCC21521DWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
