Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To select the right gate driver IC, consider factors such as the type of power device (MOSFET, IGBT, etc.), switching frequency, voltage rating, current rating, and package type. The UCC21530BQDWKRQ1 is suitable for high-frequency, high-power applications with MOSFETs or IGBTs. Consult the datasheet and application notes for more information.
The maximum allowable voltage on the VCC pin is 15V, as specified in the datasheet. Exceeding this voltage may damage the device. It's essential to ensure that the power supply voltage is within the recommended range to ensure reliable operation.
Proper thermal management is crucial to prevent overheating and ensure reliable operation. Use a heat sink, thermal interface material, and follow the recommended PCB layout guidelines to minimize thermal resistance. Monitor the junction temperature (TJ) and ensure it stays within the specified range (–40°C to 150°C).
The VREF pin is used to set the internal voltage reference for the gate driver. It's typically connected to a voltage source (e.g., 5V or 3.3V) through a resistive divider network. This allows the gate driver to generate a stable voltage reference for the output stages, ensuring proper operation and minimizing noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21530BQDWKRQ1 Overview

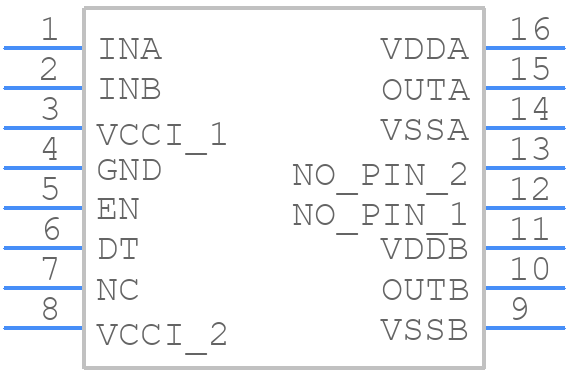

Use the download button to access the UCC21530BQDWKRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
