UCC21540ADWKR - Texas Instruments

Description: Gate Drivers Reinforced isolation dual-channel gate driver with 5V UVLO and 3.3mm channel-to-channel spacing 14-SOIC -40 to 125

Download UCC21540ADWKR Model

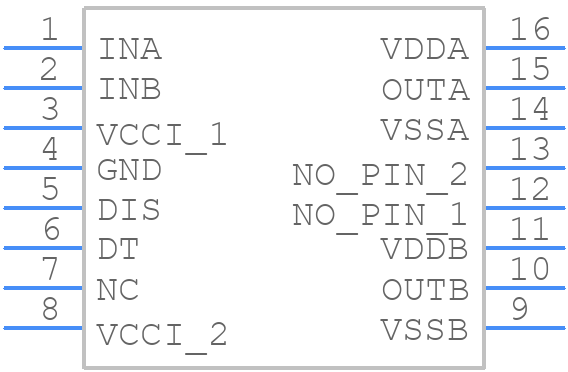

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21540ADWKR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWK0014A
click to zoom
3D Models
UCC21540ADWKR - Texas Instruments  - 3D model - Small Outline Packages - DWK0014A
click to zoom

UCC21540ADWKR Details

  • Manufacturer Part Number:

    UCC21540ADWKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-09-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14/16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    4.2 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    7.5 mm

UCC21540ADWKR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21540ADWKR involves keeping the high-frequency signals away from the low-frequency signals, using a solid ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, derating the device's power handling and using thermal monitoring and protection circuits can help prevent overheating.
  • When using the UCC21540ADWKR, it's crucial to implement proper EMI filtering to minimize electromagnetic interference. This can be achieved by using a combination of common-mode chokes, differential-mode chokes, and capacitors to filter out high-frequency noise. Additionally, using shielding and grounding techniques can help reduce EMI emissions.
  • To troubleshoot issues with the UCC21540ADWKR, start by verifying the power supply voltage, checking for proper PCB layout and component placement, and ensuring that the device is operated within its recommended specifications. Use oscilloscopes and logic analyzers to debug the signals and identify the root cause of the issue. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • When using the UCC21540ADWKR in a high-reliability or safety-critical application, it's essential to follow strict design and testing guidelines to ensure the device meets the required safety and reliability standards. This may involve implementing redundant systems, using fault-tolerant design techniques, and performing rigorous testing and validation to ensure the device meets the required specifications.
