UCC21540DWR - Texas Instruments

Description: Reinforced Isolation Dual-Channel Gate Driver With 3.3mm Channel-to-Channel Spacing Option

Download UCC21540DWR Model

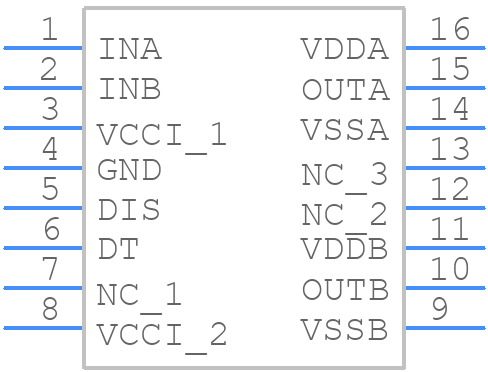

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21540DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
UCC21540DWR - Texas Instruments  - 3D model - Small Outline Packages - DW0016B
click to zoom

UCC21540DWR Details

  • Manufacturer Part Number:

    UCC21540DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14/16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    4.2 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    9.2 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    7.5 mm

UCC21540DWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21540DWR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing the length of the power traces. TI provides a recommended PCB layout in the application note SLUA623.
  • To ensure the UCC21540DWR operates within its SOA, monitor the device's junction temperature (TJ) and ensure it does not exceed 150°C. Also, keep the input voltage (VIN) within the recommended range (4.5V to 18V), and avoid exceeding the maximum current ratings for the output (IOUT) and input (IIN).
  • When selecting L and COUT, consider the desired output voltage ripple, inductor core loss, and capacitor ESR. TI provides a detailed inductor and capacitor selection guide in the UCC21540DWR datasheet and application notes.
  • To troubleshoot issues with the UCC21540DWR, start by verifying the PCB layout and component selection. Check for proper decoupling, filtering, and grounding. Use an oscilloscope to monitor the switching waveforms and output voltage. Consult the UCC21540DWR datasheet and application notes for troubleshooting guidelines.
  • To manage thermal performance, ensure good airflow around the device, and consider using a heat sink or thermal interface material (TIM) if necessary. Monitor the device's junction temperature (TJ) and ensure it does not exceed 150°C. TI provides thermal design guidelines in the UCC21540DWR datasheet.
