A good PCB layout for the UCC21541DW involves keeping the input and output stages separate, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the application note SLUA623.
When selecting a transformer for the UCC21541DW, consider the voltage ratio, power rating, and leakage inductance. TI recommends using a transformer with a turns ratio of 1:1 or 1:1.2, and a power rating that matches the output power requirement. The datasheet provides more information on transformer selection.
To ensure reliable operation, it's essential to manage the thermal performance of the UCC21541DW. This involves providing adequate heat sinking, using thermal interface materials, and keeping the device within the recommended operating temperature range (–40°C to 125°C).
The UCC21541DW has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output and the GND pin, and set the overcurrent threshold (Ilim) using an external resistor (Rlim) connected between the ILIM pin and the GND pin.
The UCC21541DW is a high-performance, low-power isolated DC-DC converter with a wide input range (3.3V to 5.5V) and high efficiency (up to 85%). It's suitable for low-power applications, whereas other TI converters like the UCC21520 may be more suitable for higher-power applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21541DW Overview

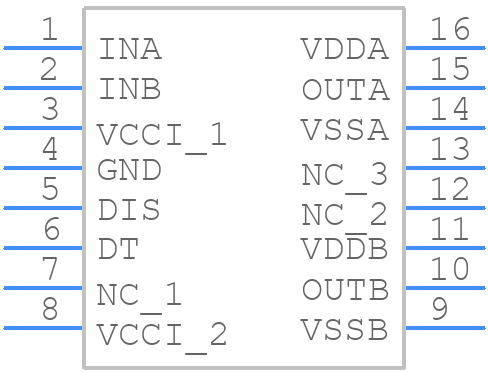

Use the download button to access the UCC21541DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
