Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. X7R or X5R ceramic capacitors are recommended due to their low ESR and high reliability.
The UCC21541DWR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
Yes, the UCC21541DWR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade and is also suitable for industrial and medical applications that require high reliability and robustness.
Texas Instruments provides a troubleshooting guide in the application note SLUA624, which covers common issues and their solutions. It's essential to follow the recommended PCB layout, ensure proper component selection, and verify the input and output voltage and current levels to troubleshoot issues effectively.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21541DWR Overview

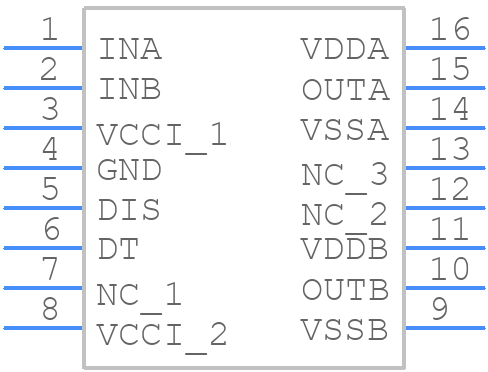

Use the download button to access the UCC21541DWR schematic symbol, PCB footprint, and 3D model.
