Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure proper biasing, follow the recommended biasing scheme in the datasheet, and make sure to decouple the VCC pin with a 10nF to 100nF capacitor. Additionally, use a low-ESR capacitor for the VCC bypass capacitor to minimize high-frequency noise.
The maximum allowable voltage on the input pins of the UCC21542DWKR is 6V, which is the absolute maximum rating. However, for normal operation, the input voltage should be limited to 5.5V to ensure reliable operation and prevent damage to the device.
To troubleshoot issues with the UCC21542DWKR, start by verifying the input voltage, clock frequency, and output load. Check for proper PCB layout, decoupling, and routing. Use an oscilloscope to measure the output voltage and clock signal. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
The UCC21542DWKR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management, such as using a heat sink or thermal pad, and follow the recommended operating conditions in the datasheet to minimize the risk of device failure.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21542DWKR Overview

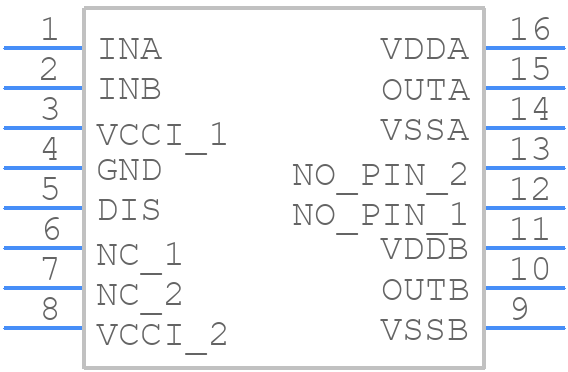

Use the download button to access the UCC21542DWKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
