UCC21542DWR - Texas Instruments

Description: Gate Drivers Reinforced isolation dual-channel gate driver with 3.3-mm channel-to-channel spacing option 16-SOIC -40 to 125

Download UCC21542DWR Model

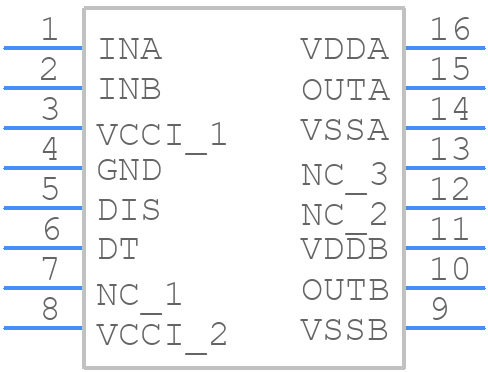

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21542DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
UCC21542DWR - Texas Instruments  - 3D model - Small Outline Packages - DW0016B
click to zoom

UCC21542DWR Details

  • Manufacturer Part Number:

    UCC21542DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    4.2 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    9.2 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    7.5 mm

UCC21542DWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, the device should be operated within its specified temperature range, and the junction temperature should be monitored to prevent overheating.
  • When selecting a gate driver IC, key considerations include the type of power device being driven (e.g., MOSFET, IGBT), the switching frequency, the voltage and current requirements, the package type, and the isolation requirements. Additionally, the gate driver IC should be compatible with the system's power supply and should provide the necessary protection features, such as undervoltage lockout and overcurrent protection.
  • To troubleshoot issues with the UCC21542DWR, start by verifying the power supply and input signals, then check the output signals and the gate-emitter voltage of the power device. Use an oscilloscope to monitor the waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues, such as oscillations, overcurrent, or undervoltage lockout.
  • The UCC21542DWR dual-channel gate driver IC offers several benefits, including reduced component count, smaller PCB footprint, and improved system reliability. The dual-channel design also enables the use of a single power supply and a single input signal, simplifying the system design and reducing the overall cost.
