UCC21732DW - Texas Instruments

Description: UCC21732 10 A Source Sink Reinforced Isolated Single Channel Gate Driver for SiC IGBT with Active Protection Isolated Analog Sensing

Download UCC21732DW Model
Schematic

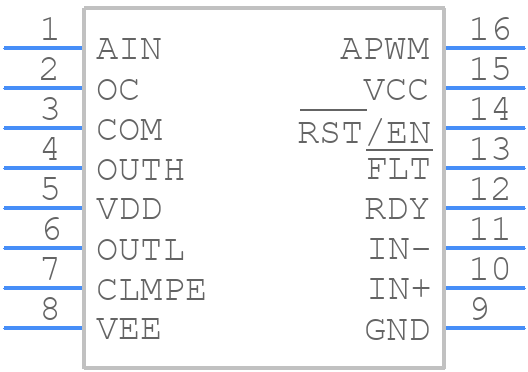

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21732DW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G16)
click to zoom
3D Models
UCC21732DW - Texas Instruments  - 3D model - Small Outline Packages - DW (R-PDSO-G16)
click to zoom

UCC21732DW Details

  • Manufacturer Part Number:

    UCC21732DW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-08-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current-Max:

    10 A

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    33 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.13 µs

  • Turn-on Time:

    0.13 µs

  • Width:

    7.5 mm

UCC21732DW Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21732DW involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the datasheet and application notes.
  • When selecting a transformer for the UCC21732DW, consider the maximum output power, output voltage, and input voltage. The transformer's turns ratio, inductance, and core material should be chosen to ensure efficient energy transfer and minimize losses. TI provides guidelines for transformer selection in the datasheet and application notes.
  • The UCC21732DW has a maximum junction temperature of 150°C. Ensure good thermal conduction by using a heat sink, thermal interface material, and a PCB with thermal vias. Monitor the device's temperature and adjust the design to prevent overheating.
  • The UCC21732DW has a built-in overcurrent protection feature. Set the OCSET pin to the desired overcurrent threshold, and the device will automatically shut down in case of an overcurrent event. You can also use external circuitry to enhance overcurrent protection.
  • The UCC21732DW requires an EMI filter to meet regulatory requirements. A common-mode choke, X-capacitors, and Y-capacitors can be used to filter out electromagnetic interference. The filter design should be optimized for the specific application and frequency range.
