UCC21732QDWRQ1 - Texas Instruments

Description: Automotive single-channel isolated gate driver for SiC/IGBT with advanced protection and high-CMTI

Download UCC21732QDWRQ1 Model

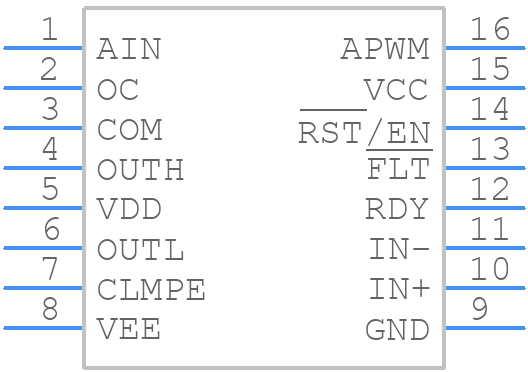

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21732QDWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-DW-16
click to zoom
3D Models
UCC21732QDWRQ1 - Texas Instruments  - 3D model - Small Outline Packages - SOIC-DW-16
click to zoom

UCC21732QDWRQ1 Details

  • Manufacturer Part Number:

    UCC21732QDWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    10 A

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    33 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.13 µs

  • Turn-on Time:

    0.13 µs

  • Width:

    7.5 mm

UCC21732QDWRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21732QDWRQ1 involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing the length of the traces connected to the SW pin.
  • To ensure the UCC21732QDWRQ1 operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Ensure that the device is not subjected to excessive voltage, current, or temperature stress, and that the thermal design is adequate to keep the junction temperature within the recommended range.
  • When selecting the input capacitor (CIN) for the UCC21732QDWRQ1, consider the capacitor's voltage rating, ESR, and ripple current rating. Choose a capacitor with a voltage rating that exceeds the maximum input voltage, a low ESR to minimize voltage ripple, and a ripple current rating that exceeds the expected input current ripple.
  • To optimize the output filter design for the UCC21732QDWRQ1, consider the output voltage ripple requirement, output current, and the desired transient response. Choose an output capacitor with a suitable voltage rating, ESR, and capacitance value, and optimize the inductor value and output capacitor value to achieve the desired output voltage ripple and transient response.
  • When designing the thermal management for the UCC21732QDWRQ1, consider the device's power dissipation, junction-to-ambient thermal resistance, and the maximum allowed junction temperature. Ensure that the thermal design provides adequate heat sinking, and that the device is mounted on a suitable PCB material with adequate thermal conductivity.
