Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation over the entire operating temperature range (-40°C to 125°C), it's crucial to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and adjust the operating conditions accordingly.
While the PUCC21732QDWQ1 has built-in ESD protection, it's essential to note that it's not a substitute for proper ESD protection design practices. The device's ESD protection is designed to protect against human body model (HBM) and charged device model (CDM) events, but it may not provide sufficient protection against other types of ESD events or high-voltage transients. Additional external ESD protection devices may be necessary depending on the application.
To optimize power consumption, consider using the device's power-down mode, reducing the operating frequency, and minimizing the output load. Additionally, use a low-dropout regulator (LDO) or a switching regulator with a high power conversion efficiency to minimize power losses. It's also essential to optimize the PCB design to minimize power consumption by reducing parasitic capacitance and inductance.
When using the PUCC21732QDWQ1 in a high-reliability or safety-critical application, it's essential to follow proper design and verification practices, such as performing thorough testing and validation, using redundant or fault-tolerant designs, and ensuring compliance with relevant industry standards and regulations. Additionally, consider using a device with a higher temperature rating or a more robust package option.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PUCC21732QDWQ1 Overview

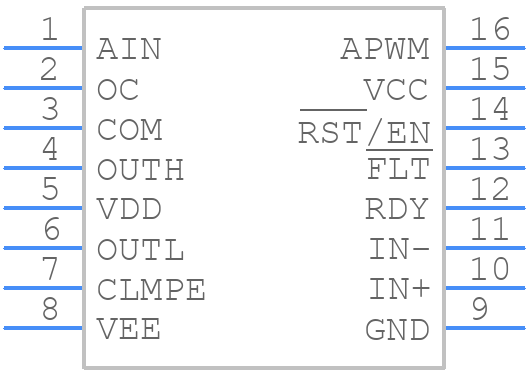

Use the download button to access the PUCC21732QDWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PUCC2,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
