UCC21732QDWQ1 - Texas Instruments

Description: cc

Download UCC21732QDWQ1 Model

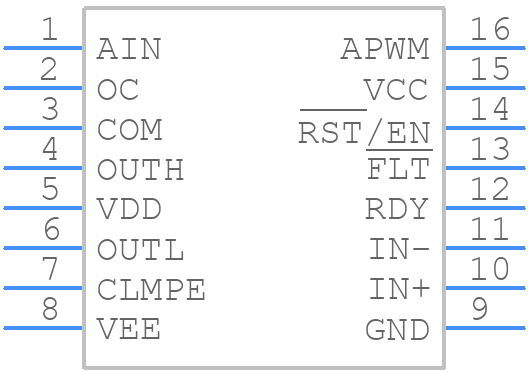

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21732QDWQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
UCC21732QDWQ1 - Texas Instruments  - 3D model - Small Outline Packages - DW0016A
click to zoom

UCC21732QDWQ1 Details

  • Manufacturer Part Number:

    UCC21732QDWQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    10 A

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    33 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.13 µs

  • Turn-on Time:

    0.13 µs

  • Width:

    7.5 mm

UCC21732QDWQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21732QDWQ1 involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure the UCC21732QDWQ1 operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Ensure that the device is not subjected to excessive voltage, current, or temperature stress, and that the thermal design is adequate to keep the junction temperature below the maximum rating.
  • When selecting the input capacitor (CIN) for the UCC21732QDWQ1, consider the capacitor's voltage rating, capacitance value, equivalent series resistance (ESR), and ripple current rating. Choose a capacitor with a voltage rating that exceeds the maximum input voltage, a capacitance value that meets the required ripple attenuation, and an ESR that minimizes power losses.
  • To troubleshoot issues with the UCC21732QDWQ1, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, component selection, and thermal design. Use an oscilloscope to inspect the switching waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
  • Operating the UCC21732QDWQ1 at a frequency other than the recommended 400 kHz may affect the device's performance, efficiency, and stability. Higher frequencies can increase switching losses and reduce efficiency, while lower frequencies can increase the size of the output filter components. Consult the datasheet and application notes for guidance on frequency selection and optimization.
