Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the UCC2305TDWRQ1.
The UCC2305TDWRQ1 has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management, such as heat sinking and airflow, to prevent overheating and ensure reliable operation.
Yes, the UCC2305TDWRQ1 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is manufactured using a high-reliability process. However, it's essential to review the device's qualification data and perform additional testing and validation as required by the specific application.
To troubleshoot issues with the UCC2305TDWRQ1, start by reviewing the application circuit and ensuring it meets the recommended layout and component selection guidelines. Use oscilloscopes and other measurement tools to identify the source of the issue. Check for proper input and output filtering, and ensure the device is operated within its recommended operating conditions. If the issue persists, consult the Texas Instruments support resources, such as the E2E forum or technical support team, for further assistance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC2305TDWRQ1 Overview

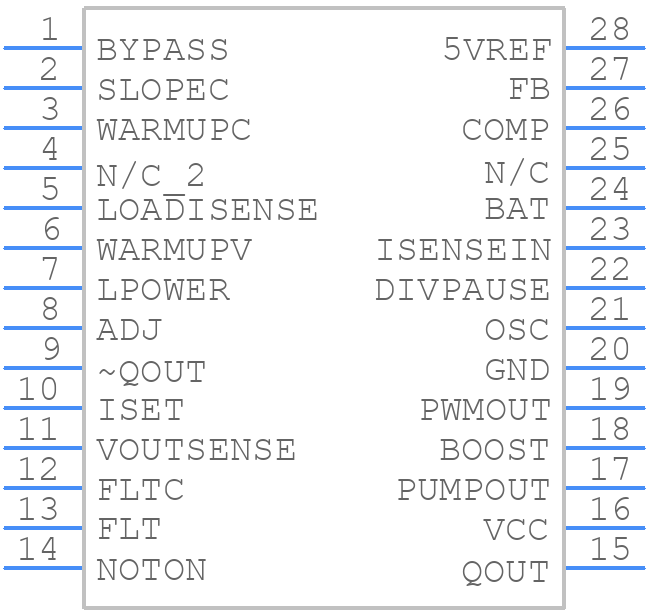

Use the download button to access the UCC2305TDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC23,
or try a keyword search, such as Switching Regulator or Controllers
