Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating to ensure it can handle the input current and frequency.
The UCC23514EDWVR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management, such as heat sinking and airflow, to prevent overheating and ensure reliable operation.
Yes, the UCC23514EDWVR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade and is manufactured using a high-reliability process. However, it's essential to review the device's qualification data and perform additional testing and validation as required by the specific application.
Texas Instruments provides a troubleshooting guide in the application note SLUA624, which covers common issues and their solutions. Additionally, engineers can use tools like oscilloscopes, signal generators, and thermal cameras to debug and analyze the circuit. It's also recommended to review the design and layout to ensure they meet the recommended guidelines.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC23514EDWVR Overview

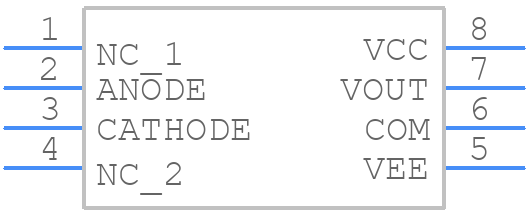

Use the download button to access the UCC23514EDWVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC23,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
