Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, trace routing, and grounding to minimize EMI and ensure proper operation of the UCC24610D.
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple and ensure stable operation.
The UCC24610D has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
Yes, the UCC24610D is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is also suitable for industrial and medical applications that require high reliability and robustness.
To troubleshoot issues with the UCC24610D, start by verifying the PCB layout and component selection. Check for proper decoupling, grounding, and input/output filtering. Use an oscilloscope to measure the input and output waveforms, and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC24610D Overview

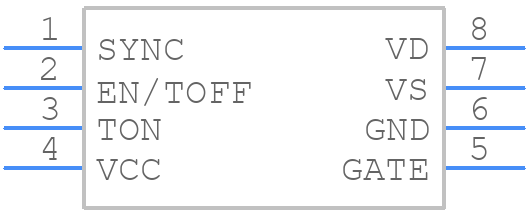

Use the download button to access the UCC24610D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC24,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
