A good PCB layout for the UCC24610DR involves keeping the input and output stages separate, using a star-ground configuration, and placing the device close to the input capacitors. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
To ensure the UCC24610DR operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Use thermal design and layout techniques to keep the junction temperature below 150°C. Also, ensure the input voltage is within the recommended range of 4.5V to 18V, and the output current is within the recommended range of 0A to 10A.
The recommended input capacitor value for the UCC24610DR is 10uF to 22uF, with a voltage rating of 25V or higher. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended due to its low equivalent series resistance (ESR) and high ripple current capability.
To troubleshoot issues with the UCC24610DR, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, component selection, and thermal design. Use an oscilloscope to monitor the output voltage and current waveforms. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown.
Yes, the UCC24610DR is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. Additionally, it has a wide operating temperature range of -40°C to 125°C, making it suitable for harsh environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC24610DR Overview

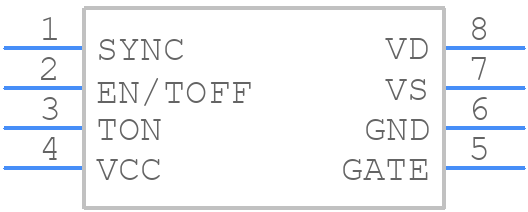

Use the download button to access the UCC24610DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC24,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
