A good PCB layout for the UCC25630-3DDBR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the datasheet and application notes.
The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet. You can also use TI's WEBENCH Power Designer tool to help with inductor selection.
The UCC25630-3DDBR has an operating ambient temperature range of -40°C to 125°C. However, the maximum junction temperature (TJ) is 150°C. Ensure that your design takes into account thermal considerations to prevent overheating.
Yes, the UCC25630-3DDBR can be used in a synchronous rectification configuration. This can improve efficiency, especially at higher output currents. However, ensure that you follow the recommended design guidelines and layout considerations to minimize parasitic inductances.
To troubleshoot issues with the UCC25630-3DDBR, start by checking the PCB layout, component values, and soldering quality. Use an oscilloscope to measure waveforms and identify potential issues. Consult the datasheet, application notes, and TI's support resources for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC25630-3DDBR Overview

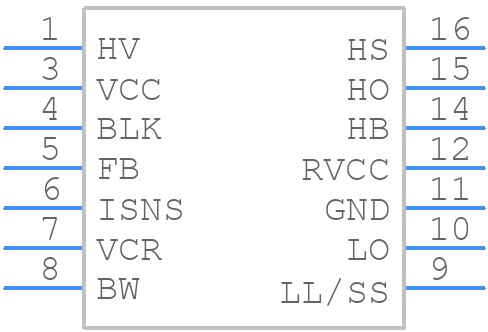

Use the download button to access the UCC25630-3DDBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
