A good PCB layout for the UCC25630-3DDBT involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas to reduce EMI. TI provides a recommended layout in the datasheet and application notes.
The inductor value depends on the input voltage, output voltage, and desired switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements and efficiency targets.
The UCC25630-3DDBT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. It's essential to consider the junction temperature (TJ) and ensure it stays within the recommended range to ensure reliability.
To ensure stability, follow the recommended compensation network values and layout guidelines provided in the datasheet. Additionally, ensure that the input and output capacitors are properly selected and placed, and that the PCB layout is optimized for minimal parasitic inductance and capacitance.
The UCC25630-3DDBT can deliver up to 3 A of output current, but the actual current capability depends on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet for the recommended operating conditions and thermal derating factors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC25630-3DDBT Overview

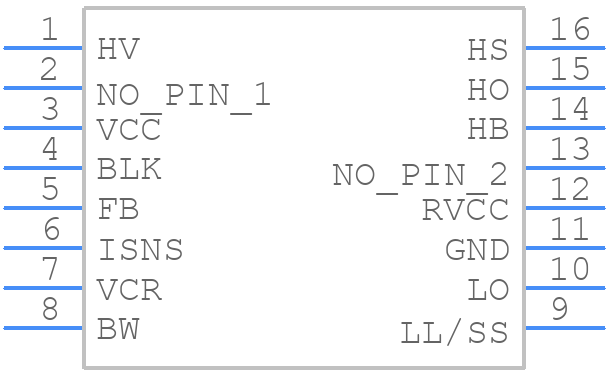

Use the download button to access the UCC25630-3DDBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
