Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of the transformer depends on the specific application requirements, such as output voltage, current, and power rating. Texas Instruments provides a transformer selection guide in the application note SLUA624, which includes guidelines for selecting the right transformer and calculating the transformer's turns ratio, inductance, and leakage inductance.
The maximum operating temperature range for UCC25701N is -40°C to 125°C, as specified in the datasheet. However, the device's performance and reliability may be affected at extreme temperatures, and it is recommended to operate the device within a temperature range of 0°C to 100°C for optimal performance.
The UCC25701N has built-in OVP and UVP features, but they require external resistors and capacitors to set the threshold voltages. The application note SLUA625 provides a detailed guide on how to implement OVP and UVP using the UCC25701N, including calculation of the required resistor and capacitor values.
Yes, the UCC25701N is qualified for use in high-reliability and automotive applications, and it meets the requirements of the AEC-Q100 standard. However, it is recommended to consult with Texas Instruments' technical support team to ensure that the device meets the specific requirements of the application and to obtain any necessary documentation and certification.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC25701N Overview

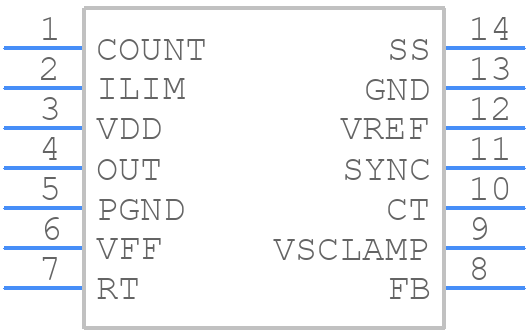

Use the download button to access the UCC25701N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
