Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components such as the transformer, input and output capacitors, and resistors depends on the specific application requirements. Texas Instruments provides a component selection guide in the datasheet and application notes, which can be used as a starting point. Additionally, online tools such as the TI Power Stage Designer can be used to simplify the component selection process.
The UCC35701N has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
Texas Instruments provides troubleshooting guides and application notes that cover common issues and their solutions. Additionally, the TI E2E community forum is a valuable resource where engineers can ask questions and get answers from experts and peers. A systematic approach to troubleshooting, including checking the PCB layout, component values, and signal integrity, can also help identify and resolve issues.
Yes, the UCC35701N is compatible with lead-free soldering processes. Texas Instruments ensures that their devices meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, and the UCC35701N is no exception. However, it's essential to follow the recommended soldering profile and guidelines to ensure reliable assembly and operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC35701N Overview

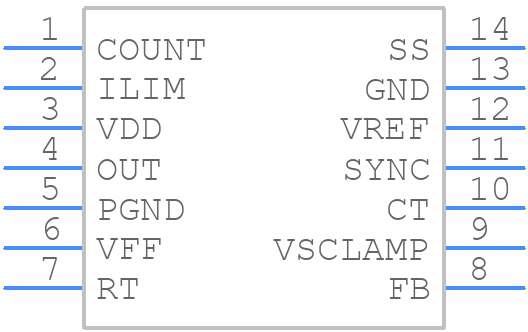

Use the download button to access the UCC35701N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC35,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
