- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for UCC25710DW
- Part Number UCC25710DW
- Manufacturer Texas Instruments
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DW (R-PDSO-G20)
- Released Date May 1, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
UCC25710DW Details
-
Manufacturer Part Number:
UCC25710DW
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Pin Count:
20
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
UCC25710DW Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the UCC25710DW evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure reliable operation.
-
The UCC25710DW datasheet provides guidelines for transformer selection, including recommended turns ratios, inductance values, and core materials. Additionally, Texas Instruments offers a transformer selection tool on their website, which can help engineers choose a suitable transformer based on their specific application requirements.
-
The UCC25710DW has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) is 150°C. Engineers should ensure that the device is operated within the recommended temperature range to prevent overheating and ensure reliable operation.
-
The UCC25710DW has built-in OVP and UVP features, but engineers can also implement external protection circuits using resistors, zener diodes, and other components. Texas Instruments provides application notes and design examples that demonstrate how to implement OVP and UVP with the UCC25710DW.
-
The recommended input capacitance value for the UCC25710DW depends on the specific application requirements, such as input voltage, output voltage, and switching frequency. A general guideline is to use a capacitance value between 10nF to 100nF, but engineers should consult the datasheet and application notes for more specific guidance.
Trust Checks
Community Provided
System Verified
Community Approved
UCC25710DW Overview

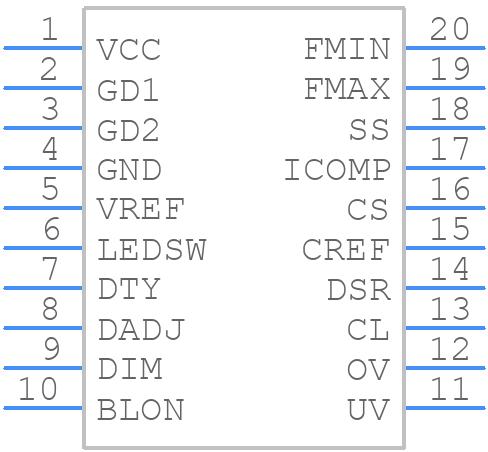

Use the download button to access the UCC25710DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Display Drivers
