A good PCB layout for the UCC25800AQDGNRQ1 involves keeping the input and output stages separate, using a solid ground plane, and minimizing the length of the traces between the device and the load. TI provides a recommended PCB layout in the application note SLUA623.
Proper thermal management involves providing a heat sink or thermal pad to dissipate heat, ensuring good airflow, and keeping the device away from heat sources. The thermal pad should be connected to a copper plane on the PCB to improve heat dissipation.
The recommended input capacitor is a 10uF ceramic capacitor with X7R or X5R dielectric, and the recommended output capacitor is a 22uF ceramic capacitor with X7R or X5R dielectric. The capacitors should be placed close to the device and have low ESR.
Troubleshooting involves checking the input voltage, output voltage, and current, as well as the device's thermal performance. Use an oscilloscope to check for oscillations, and verify that the device is properly configured and connected.
The enable pin allows the device to be turned on and off, which can be useful for power management. However, it also introduces a delay in the startup sequence, and care must be taken to ensure that the device is properly enabled and disabled to avoid unwanted behavior.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC25800AQDGNRQ1 Overview

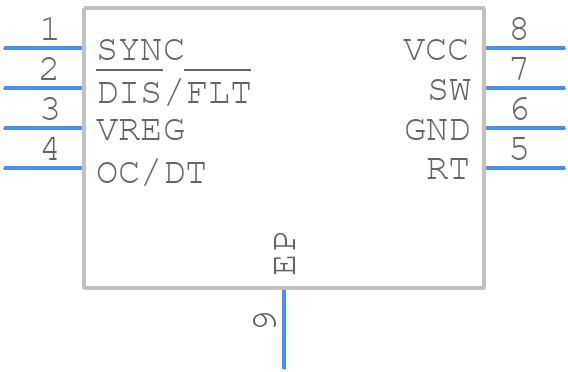

Use the download button to access the UCC25800AQDGNRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
