- Part Number UCC2583DTR
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D
- Released Date Sep 6, 2021
- Last Modified Date Dec 1, 2023 6:27 AM UTC
- Pinout / Pin List Click Here (Member Only)
UCC2583DTR Details
-
Manufacturer Part Number:
UCC2583DTR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Pin Count:
14
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
UCC2583DTR Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The selection of the transformer depends on the specific application requirements, such as output voltage, current, and power rating. Texas Instruments provides a transformer selection guide in the application note SLUA272, which includes guidelines for selecting the right transformer and calculating the transformer's turns ratio, inductance, and leakage inductance.
-
The maximum operating temperature range for UCC2583DTR is -40°C to 125°C, as specified in the datasheet. However, the device's performance and reliability may be affected at extreme temperatures, and it is recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
-
Texas Instruments provides a troubleshooting guide in the application note SLUA273, which includes steps to identify and resolve common issues with UCC2583DTR, such as oscillations, instability, and overvoltage protection. The guide also includes tips for debugging and optimizing the device's performance.
-
No, UCC2583DTR is designed for use in isolated topologies, such as flyback converters, and is not suitable for non-isolated topologies. The device's internal circuitry and pinout are optimized for isolated operation, and using it in a non-isolated topology may result in poor performance, instability, or even damage to the device.
Trust Checks
Community Provided
System Verified
Community Approved
UCC2583DTR Overview

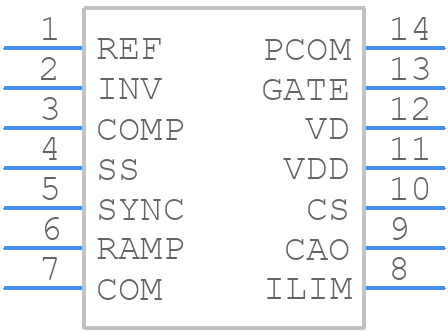

Use the download button to access the UCC2583DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC25,
or try a keyword search, such as Switching Regulator or Controllers
