A good PCB layout for the UCC2626DW involves keeping the input and output stages separate, using a star-ground configuration, and placing the input filter components close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
The choice of input filter components depends on the specific application requirements, such as the input voltage range, output voltage, and desired level of noise attenuation. A good starting point is to use the recommended component values in the datasheet, and then adjust them based on simulation and experimentation.
The UCC2626DW can deliver up to 2A of output current, but this depends on the input voltage, output voltage, and thermal conditions. It's essential to check the thermal derating curves in the datasheet to ensure the device can deliver the required output current in the specific application.
The UCC2626DW has a SYNC pin that can be used to synchronize the internal oscillator with an external clock signal. The external clock signal should be a square wave with a frequency between 100 kHz and 1 MHz, and the SYNC pin should be connected to the clock signal through a resistor and capacitor network.
The EN (Enable) pin is used to enable or disable the UCC2626DW. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. This pin can be used to implement power sequencing, fault detection, or other system-level functions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2626DW Overview

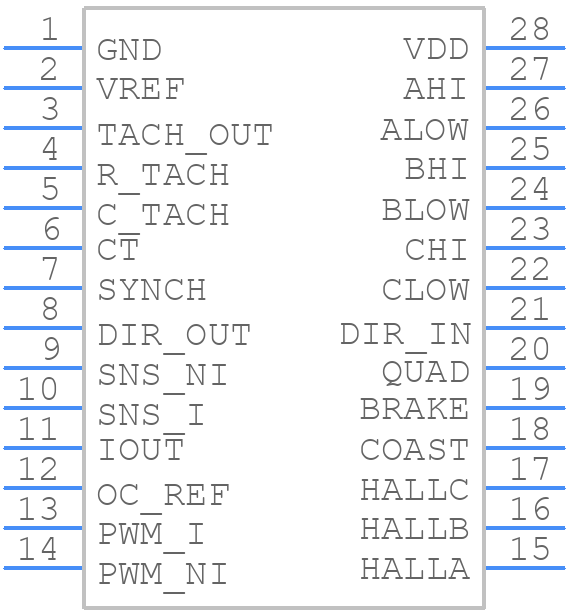

Use the download button to access the UCC2626DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC26,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
