UCC2626PWG4 - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Brushless DC Motor Controller

Download UCC2626PWG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

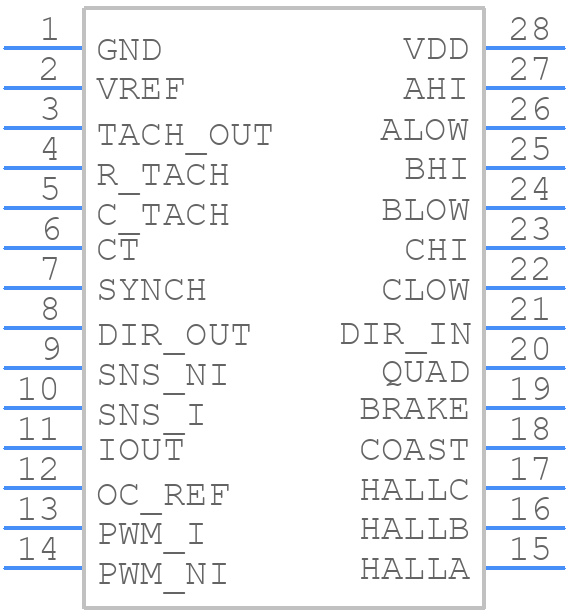

UCC2626PWG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC2626PWG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
UCC2626PWG4 - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

UCC2626PWG4 Details

  • Manufacturer Part Number:

    UCC2626PWG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Analog IC - Other Type:

    1-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    14.5 V

  • Supply Voltage-Min (Vsup):

    11 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

UCC2626PWG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the UCC2626PWG4 datasheet, but it's also recommended to follow the guidelines in the TI application note 'UCCx626-x7-x8 PFC/PWM Controller EVM User's Guide' (SLUUAC6) for optimal performance and thermal management.
  • The transformer selection depends on the specific application requirements, such as input voltage, output voltage, and power rating. TI provides a transformer selection guide in the UCC2626PWG4 datasheet, and also recommends using the TI Transformer Design Tool (TDT) to help with the selection process.
  • The UCC2626PWG4 has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating.
  • Yes, the UCC2626PWG4 is a dual-stage controller that can be used for both PFC (Power Factor Correction) and PWM (Pulse-Width Modulation) stages in a single design. This allows for a more compact and efficient power supply design.
  • The UCC2626PWG4 has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by selecting the appropriate resistor values in the voltage divider network.
