A good PCB layout for the UCC27201ADDAR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loops. TI provides a recommended layout in the datasheet and application notes.
Choose an input capacitor with a high ripple current rating, low ESR, and a voltage rating that exceeds the maximum input voltage. A wrong choice can lead to reduced converter efficiency, increased noise, and even damage to the IC.
The UCC27201ADDAR is rated for operation from -40°C to 125°C. Elevated temperatures can reduce the device's efficiency, increase power losses, and affect its reliability. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
To ensure proper synchronization, connect the external clock signal to the SYNC pin, and ensure the clock frequency is within the recommended range (typically 100 kHz to 1 MHz). Improper synchronization can lead to unstable operation, increased noise, and reduced converter efficiency.
Choose an output inductor with a high saturation current rating, low DC resistance, and a suitable inductance value. A wrong choice can lead to reduced converter efficiency, increased losses, and even damage to the IC.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27201ADDAR Overview

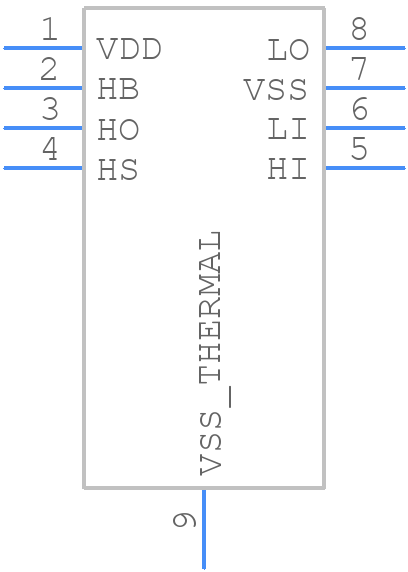

Use the download button to access the UCC27201ADDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as MOSFET Drivers
