UCC27211ADRMR - Texas Instruments

Description: Driver 4.5A 2-OUT High and Low Side Full Brdg/Half Brdg Non-Inv 8-Pin VSON EP T/R

Download UCC27211ADRMR Model

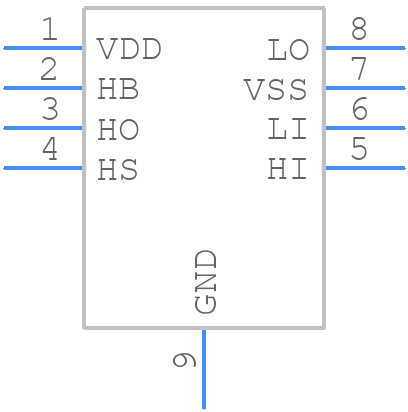

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC27211ADRMR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRM8
click to zoom
3D Models
UCC27211ADRMR - Texas Instruments  - 3D model - Small Outline No-lead - DRM8
click to zoom

UCC27211ADRMR Details

  • Manufacturer Part Number:

    UCC27211ADRMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    4 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.15,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    122 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    42 µs

  • Turn-on Time:

    42 µs

  • Width:

    4 mm

UCC27211ADRMR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC27211ADRMR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas to reduce EMI. TI provides a recommended layout in the datasheet and application notes.
  • Selecting the right external components involves considering factors such as inductor saturation, capacitor ESR, and voltage ratings. TI provides guidelines and recommendations for component selection in the datasheet and application notes. Additionally, online tools and simulation software can help with component selection and optimization.
  • The UCC27211ADRMR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use thermal interface materials, and follow proper PCB design and layout guidelines. TI provides thermal design guidelines and thermal models to help with thermal management.
  • Troubleshooting issues with the UCC27211ADRMR involves using a systematic approach, including checking the PCB layout, component values, and voltage rails. TI provides troubleshooting guides and application notes that can help identify and resolve common issues.
  • The UCC27211ADRMR and UCC27210 are both high-voltage, high-current synchronous buck converters, but they have different feature sets and pinouts. The UCC27211ADRMR has a higher switching frequency and is optimized for higher-power applications, while the UCC27210 has a lower switching frequency and is optimized for lower-power applications.
