UCC27211ADRMT - Texas Instruments

Description: 120-V Boot, 4-A Peak, High Frequency High-Side and Low-Side Driver

Download UCC27211ADRMT Model

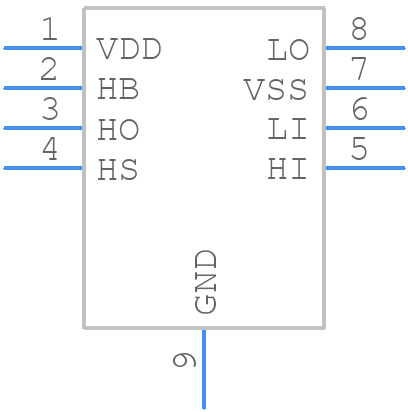

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC27211ADRMT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRM (S-PVSON-N8)
click to zoom
3D Models
UCC27211ADRMT - Texas Instruments  - 3D model - Small Outline No-lead - DRM (S-PVSON-N8)
click to zoom

UCC27211ADRMT Details

  • Manufacturer Part Number:

    UCC27211ADRMT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    4 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.15,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    122 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    42 µs

  • Turn-on Time:

    42 µs

  • Width:

    4 mm

UCC27211ADRMT Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC27211ADRMT involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas to reduce EMI. TI provides a recommended layout in the datasheet and application notes.
  • When selecting an input capacitor for the UCC27211ADRMT, consider the capacitor's voltage rating, capacitance value, ESR, and ripple current rating. A low-ESR ceramic capacitor with a voltage rating of at least 1.5 times the maximum input voltage is recommended. TI provides guidance on input capacitor selection in the datasheet and application notes.
  • The UCC27211ADRMT is rated for operation from -40°C to 125°C. As the ambient temperature increases, the device's performance may degrade, and the maximum output current may decrease. Ensure proper thermal design and heat sinking to maintain reliable operation within the specified temperature range.
  • The UCC27211ADRMT has a built-in OCP and SCP feature. To implement OCP, connect a sense resistor (Rs) between the output and GND, and set the OCP threshold voltage (Vocp) using an external resistor divider. For SCP, connect a sense resistor (Rs) between the output and GND, and set the SCP threshold voltage (Vscp) using an external resistor divider. Refer to the datasheet and application notes for detailed implementation guidelines.
  • When selecting the output inductor (L) and output capacitor (Cout) for the UCC27211ADRMT, consider the inductor's saturation current, core material, and DC resistance, as well as the capacitor's voltage rating, capacitance value, and ESR. Ensure that the inductor and capacitor are compatible with the device's switching frequency and output current requirements. TI provides guidance on component selection in the datasheet and application notes.
