A good PCB layout for the UCC27212DPRR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loops. TI provides a recommended layout in the datasheet and application notes.
Choose external components based on the specific application requirements, such as output voltage, current, and frequency. TI provides guidelines and recommendations for component selection in the datasheet and application notes. Additionally, online tools and simulation software can help with component selection and optimization.
The UCC27212DPRR has a maximum junction temperature of 150°C. Ensure reliable operation at high temperatures by providing adequate heat sinking, using thermal interface materials, and following TI's thermal design guidelines. Monitor the device's temperature and adjust the design accordingly to prevent overheating.
To troubleshoot issues with the UCC27212DPRR, start by verifying the PCB layout, component values, and soldering quality. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult TI's application notes and technical support resources for guidance on troubleshooting and debugging.
The UCC27212DPRR is a high-performance, high-frequency synchronous buck converter with a unique feature set, including a wide input voltage range and high efficiency. Compare the UCC27212DPRR with other devices based on parameters such as input voltage range, output voltage range, switching frequency, and package type to determine the best fit for your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27212DPRR Overview

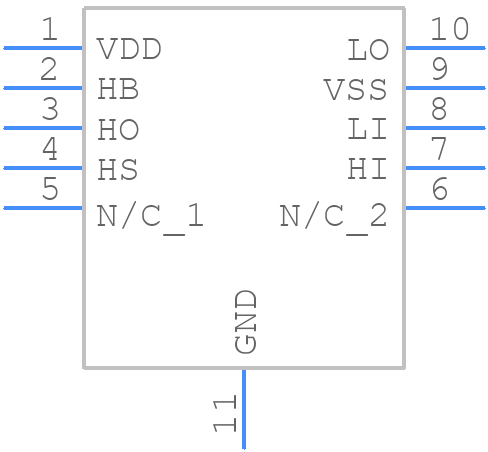

Use the download button to access the UCC27212DPRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
