SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max:
0.65 mA
Supply Voltage-Max:
15 V
Supply Voltage-Min:
4 V
Supply Voltage-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.07 µs
Turn-on Time:
0.07 µs
Width:
3 mm
UCC27321DGNR Frequently Asked Questions (FAQs)
A good PCB layout for the UCC27321DGNR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. The EN pin should be tied to a logic high or low depending on the desired state of the device. Additionally, the input and output capacitors should be properly sized and placed close to the device.
The UCC27321DGNR is designed to operate up to 100 kHz, but the actual operating frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
To protect the UCC27321DGNR from overvoltage and overcurrent conditions, it's recommended to use external protection devices such as TVS diodes and current limiting resistors. Additionally, the device has built-in overcurrent protection, but it's still important to follow proper design and layout guidelines to ensure reliable operation.
The UCC27321DGNR has a thermal derating of 1.67 mW/°C, which means that the device's power rating decreases as the ambient temperature increases. It's recommended to consult the datasheet and thermal design guidelines to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27321DGNR Overview

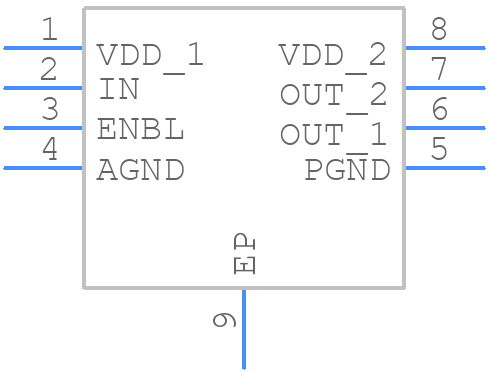

Use the download button to access the UCC27321DGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as MOSFET Drivers
