SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.1 mm
Supply Current-Max:
1 mA
Supply Voltage-Max:
15 V
Supply Voltage-Min:
4 V
Supply Voltage-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.075 µs
Turn-on Time:
0.075 µs
Width:
3 mm
UCC27322QDGNRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for the UCC27322QDGNRQ1 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pad on the bottom of the package. The thermal pad should be soldered to a solid copper plane on the PCB to dissipate heat efficiently.
To minimize EMI and ensure EMC compliance, use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure that the device is properly decoupled and that the power supply is well-regulated.
To troubleshoot issues with the UCC27322QDGNRQ1, start by checking the input and output voltages, ensuring that they are within the recommended operating range. Check for proper decoupling, and verify that the device is properly soldered to the PCB. Use an oscilloscope to check for oscillations or other anomalies on the output.
When using the UCC27322QDGNRQ1 in a high-reliability or safety-critical application, ensure that the device is properly derated, and that the system is designed with redundancy and fault tolerance in mind. Additionally, follow all relevant industry standards and guidelines for safety-critical designs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27322QDGNRQ1 Overview

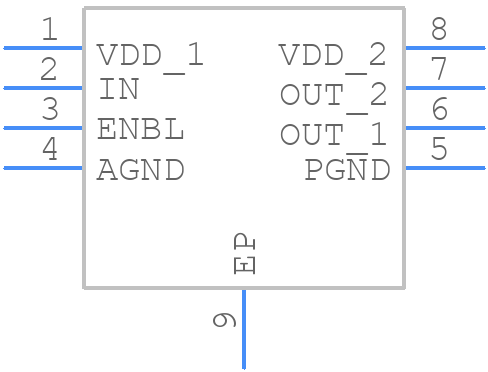

Use the download button to access the UCC27322QDGNRQ1 schematic symbol, PCB footprint, and 3D model.
