SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max:
0.45 mA
Supply Voltage-Max:
15 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.05 µs
Turn-on Time:
0.04 µs
Width:
3 mm
UCC27323DGN Frequently Asked Questions (FAQs)
A good PCB layout for the UCC27323DGN involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter capacitor.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and has a low equivalent series resistance (ESR). Additionally, adding a small resistor (e.g., 1-2 ohms) in series with the output capacitor can help dampen oscillations.
The UCC27323DGN is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
Yes, the UCC27323DGN is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for use in industrial and medical applications.
To troubleshoot issues with the UCC27323DGN, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output. Also, ensure that the device is properly heatsinked and that the thermal design is adequate.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27323DGN Overview

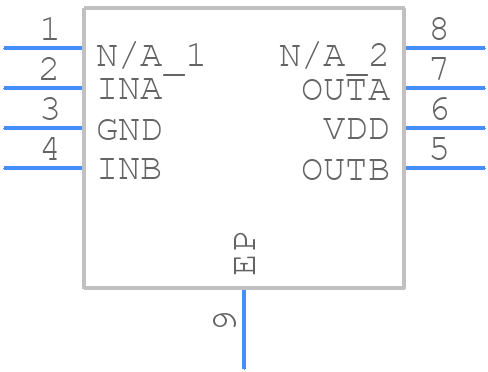

Use the download button to access the UCC27323DGN schematic symbol, PCB footprint, and 3D model.
