SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max:
0.75 mA
Supply Voltage-Max:
15 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.05 µs
Turn-on Time:
0.04 µs
Width:
3 mm
UCC27324DGNR Frequently Asked Questions (FAQs)
A good PCB layout for the UCC27324DGNR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure proper thermal management, it's recommended to attach a heat sink to the device, especially in high-power applications. The heat sink should be designed to dissipate heat efficiently, and thermal interface material (TIM) should be used to fill any gaps between the device and heat sink.
When selecting input and output capacitors for the UCC27324DGNR, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. The capacitor's ESR should be low to minimize energy losses, and the capacitance value should be sufficient to filter out high-frequency noise. The voltage rating should be higher than the maximum input or output voltage.
To troubleshoot issues with the UCC27324DGNR, start by checking the input voltage, output voltage, and current. Verify that the input voltage is within the recommended range and that the output voltage is within the specified tolerance. Check for overheating by measuring the device temperature and ensuring that it's within the recommended operating range. Use an oscilloscope to check for noise or oscillations on the output.
The UCC27324DGNR is a high-voltage, high-current device with a wide input voltage range and high power density. It's differentiated from other similar devices by its high switching frequency, low quiescent current, and high efficiency. It's also pin-compatible with other devices in the UCC27324 family, making it a drop-in replacement in many designs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27324DGNR Overview

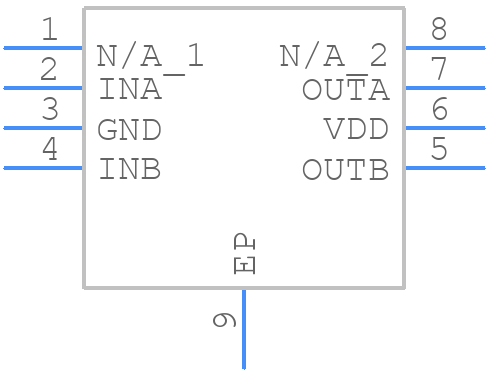

Use the download button to access the UCC27324DGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
