UCC27325DGN - Texas Instruments

Description: DUAL 4-A PEAK HIGH SPEED LOW- SIDE POWER MOSFET DRIVERS

Download UCC27325DGN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

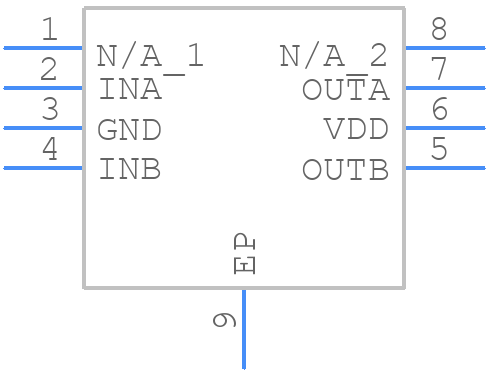

UCC27325DGN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC27325DGN - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008D
click to zoom
3D Models
UCC27325DGN - Texas Instruments - 3D model - Small Outline Packages - DGN0008D
click to zoom

UCC27325DGN Details

  • Manufacturer Part Number:

    UCC27325DGN

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Current-Max:

    4 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    3 mm

UCC27325DGN Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The UCC27325DGN has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via or a copper pour connected to a ground plane can be used to dissipate heat. Additionally, the device should be placed in a location with good airflow to prevent overheating.
  • The maximum voltage that can be applied to the input pins of the UCC27325DGN is 6.5V, which is the absolute maximum rating. However, the recommended operating voltage range is 3.3V to 5.5V to ensure reliable operation and prevent damage to the device.
  • Yes, the UCC27325DGN is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive grade devices and is suitable for use in harsh environments.
  • To troubleshoot issues with the UCC27325DGN, start by verifying the input voltage and clock signal. Check the output voltage and current with an oscilloscope or multimeter. Ensure that the device is properly connected to the load and that the PCB layout is correct. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
