SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max:
0.6 mA
Supply Voltage-Max:
15 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.05 µs
Turn-on Time:
0.04 µs
Width:
3 mm
UCC27325DGNR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The UCC27325DGNR has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via array or a copper pour with multiple vias can be used to connect the thermal pad to the thermal plane. Additionally, the PCB should be designed to minimize thermal resistance and ensure good airflow around the device.
The maximum allowed voltage on the input pins of the UCC27325DGNR is 6V, which is higher than the recommended operating voltage of 5V. However, it's essential to ensure that the input voltage does not exceed 6V to prevent damage to the device.
Yes, the UCC27325DGNR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow the recommended operating conditions and design guidelines to ensure reliable operation.
Texas Instruments provides a troubleshooting guide in the application note SLUA624, which includes a step-by-step approach to identifying and resolving common issues with the UCC27325DGNR. The guide covers topics such as output voltage errors, oscillations, and thermal issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27325DGNR Overview

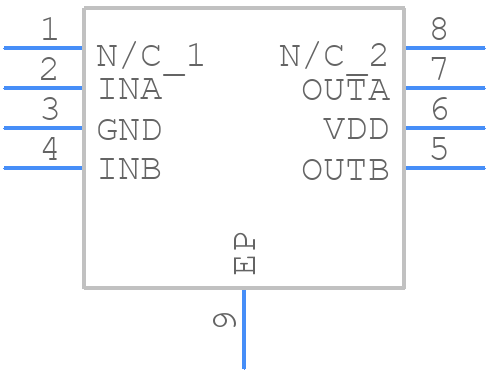

Use the download button to access the UCC27325DGNR schematic symbol, PCB footprint, and 3D model.
