UCC27423P - Texas Instruments

Description: UCC27423P, Dual MOSFET Power Driver 4A, Inverting, 4 → 15 V, 8-Pin PDIP

Download UCC27423P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

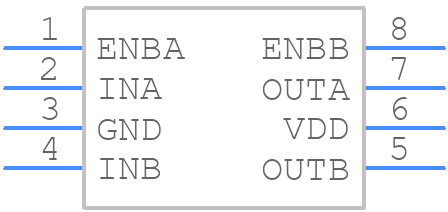

UCC27423P - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC27423P - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
UCC27423P - Texas Instruments - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

UCC27423P Details

  • Manufacturer Part Number:

    UCC27423P

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Current-Max:

    4 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    1.35 mA

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    7.62 mm

UCC27423P Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor should be selected based on the input voltage ripple, output current, and switching frequency. A general guideline is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the input voltage. Additionally, the capacitor should have a low equivalent series resistance (ESR) to minimize voltage ripple.
  • The maximum junction temperature (Tj) of the UCC27423P is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan.
  • Yes, the UCC27423P is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and is suitable for use in harsh environments.
  • Troubleshooting issues with the UCC27423P typically involves checking the PCB layout, component values, and input/output voltage levels. Texas Instruments provides a troubleshooting guide in the application note SLUA624, which includes a step-by-step approach to identifying and resolving common issues.
