A good PCB layout for the UCC27424DGNR involves keeping the input and output stages separate, using a solid ground plane, and minimizing the length of the high-frequency traces. It's also recommended to use a common mode choke to reduce EMI.
To ensure proper thermal management, make sure to provide adequate heat sinking, such as a thermal pad or heat sink, and ensure good airflow around the device. The maximum junction temperature (TJ) should not exceed 150°C.
The recommended input capacitor value for the UCC27424DGNR is typically in the range of 1-10uF, depending on the specific application and input voltage. A larger capacitor value can help reduce input ripple, but may increase the startup time.
To troubleshoot issues with the UCC27424DGNR, start by checking the PCB layout and component values, ensuring that they match the recommended values. Then, use an oscilloscope to measure the input and output waveforms, looking for signs of oscillation or instability. Check the input voltage, output current, and temperature to ensure they are within the recommended operating ranges.
The UCC27424DGNR is a commercial-grade device, but it can be used in high-reliability or aerospace applications with proper qualification and testing. However, it's recommended to consult with Texas Instruments and follow their guidelines for using commercial-grade devices in high-reliability applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27424DGNR Overview

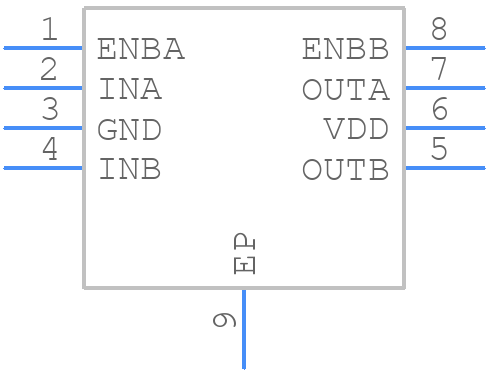

Use the download button to access the UCC27424DGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
