Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. TI recommends using low-ESR capacitors with a voltage rating of at least 2x the maximum input voltage, and following the guidelines in the datasheet and application notes for capacitor selection and placement.
The UCC27424DGNRG4 has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
Yes, the UCC27424DGNRG4 is qualified for automotive and high-reliability applications, meeting the requirements of AEC-Q100 and ISO/TS 16949. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the specific application requirements.
TI provides troubleshooting guides and application notes that cover common issues and their solutions. Additionally, engineers can use simulation tools like TI's WEBENCH or SPICE models to simulate and analyze the circuit behavior, and consult with TI's technical support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27424DGNRG4 Overview

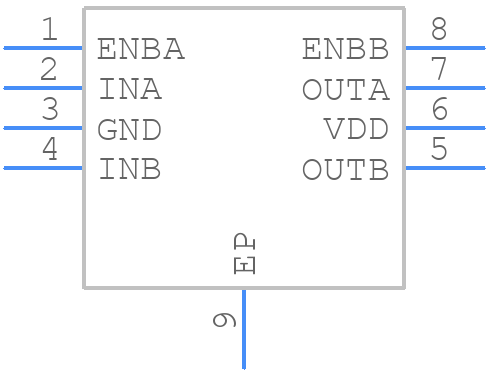

Use the download button to access the UCC27424DGNRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as MOSFET Drivers
