The UCC28019D is a high-frequency device, so a good layout and placement are crucial. TI recommends placing the device close to the power stage, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The choice of external components such as the input capacitor, output capacitor, and inductor depends on the specific application and design requirements. TI provides a component selection guide in the datasheet, and engineers can also use TI's online tools such as the Power Stage Designer to help with component selection.
The UCC28019D has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. Engineers should ensure that the device is operated within the recommended temperature range for optimal performance.
The UCC28019D has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and the VCC pin. The value of the resistor determines the overcurrent threshold. Engineers can also use external circuitry to implement more complex overcurrent protection schemes.
Yes, the UCC28019D can be used in a synchronous rectification topology. In this configuration, the device's internal FETs are used as synchronous rectifiers, which can improve efficiency and reduce power losses. However, engineers should ensure that the device is properly configured and biased for synchronous rectification operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28019D Overview

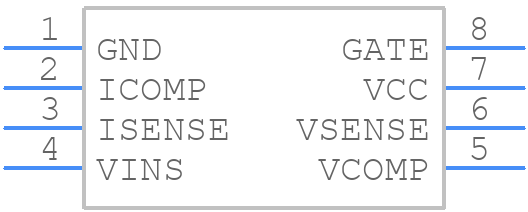

Use the download button to access the UCC28019D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
