Texas Instruments provides a recommended PCB layout in the UCC28050P datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the power stage components close together, using a solid ground plane, and minimizing trace lengths and widths.
The selection of external components such as the input capacitor, output capacitor, and inductor depends on the specific application requirements, such as input voltage, output voltage, and switching frequency. Texas Instruments provides a component selection guide in the datasheet, and online tools such as the TI Power Stage Designer can also be used to aid in component selection.
The UCC28050P has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's important to ensure proper thermal design and heat sinking to prevent overheating.
Troubleshooting issues with the UCC28050P requires a systematic approach, including checking the PCB layout, component values, and soldering quality. Texas Instruments provides a troubleshooting guide in the datasheet, and online resources such as the TI E2E forum can also be used to seek help from experienced engineers.
The UCC28050P is a high-reliability device, but it's essential to follow the recommended design and manufacturing guidelines to ensure the required level of reliability. Texas Instruments provides a reliability report and other resources to aid in the design of high-reliability systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28050P Overview

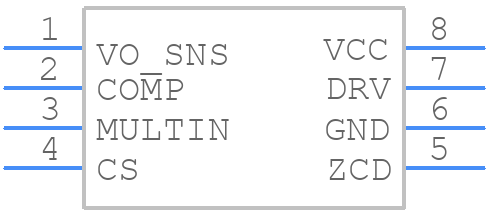

Use the download button to access the UCC28050P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
